CoreTymp is an ear-based wearable prototype for continuous temperature and environmental monitoring in demanding work environments. I owned the software and firmware work end to end, and I also contributed to the hardware design process through system-level decisions and implementation guidance.

Technical Overview

• CircuitPython firmware for reliable sensor management
• Collaborative hardware design and integration
• BME680 sensor for multi-parameter environmental data
• Bluetooth Low Energy (BLE) for wireless configuration and monitoring
• USB-C UART protocol for fast, secure data transfer
• Python-based GUI for real-time device control and data access
• Efficient minute-level logging for long-duration shifts

Contributions

• Built and iterated 10+ ESP32-based ear-worn prototypes for heat-safety monitoring, moving from breadboard builds to custom EasyEDA PCBs and shrinking the device footprint by 40%.
• Developed CircuitPython firmware with multi-sensor interfaces (BME680, thermistor, SD), BLE GATT streaming, custom UART framing and checksums, and OTA updates.
• Integrated BLE and USB workflows for real-time monitoring, data transfer, and device configuration across distributed multi-device setups.
• Built a full PyQt6 desktop application for multi-device control, used across 20+ lab test sessions.
• Drove three hardware revisions in collaboration with the team to reach a compact, field-ready wearable.

Desktop GUI (PyQt6)

Alongside the firmware, I built a full desktop application in PyQt6 to manage the entire device ecosystem from a single interface. The goal was to give researchers a way to run multi-device sessions without touching the hardware or manually handling files.

Features

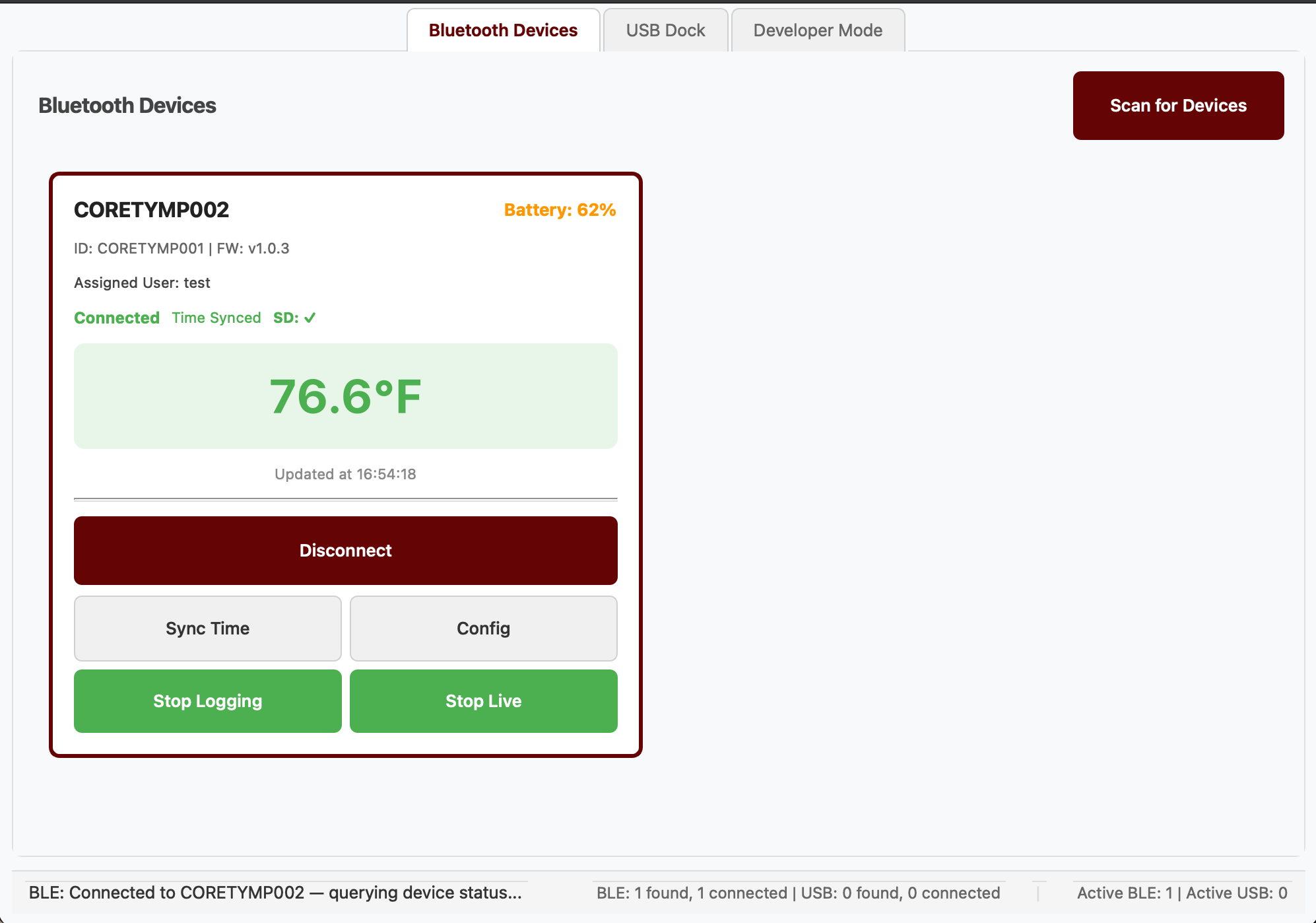

• Simultaneous BLE connections: connect to multiple CoreTymp devices at once, with per-device real-time data streams and status monitoring in a single view

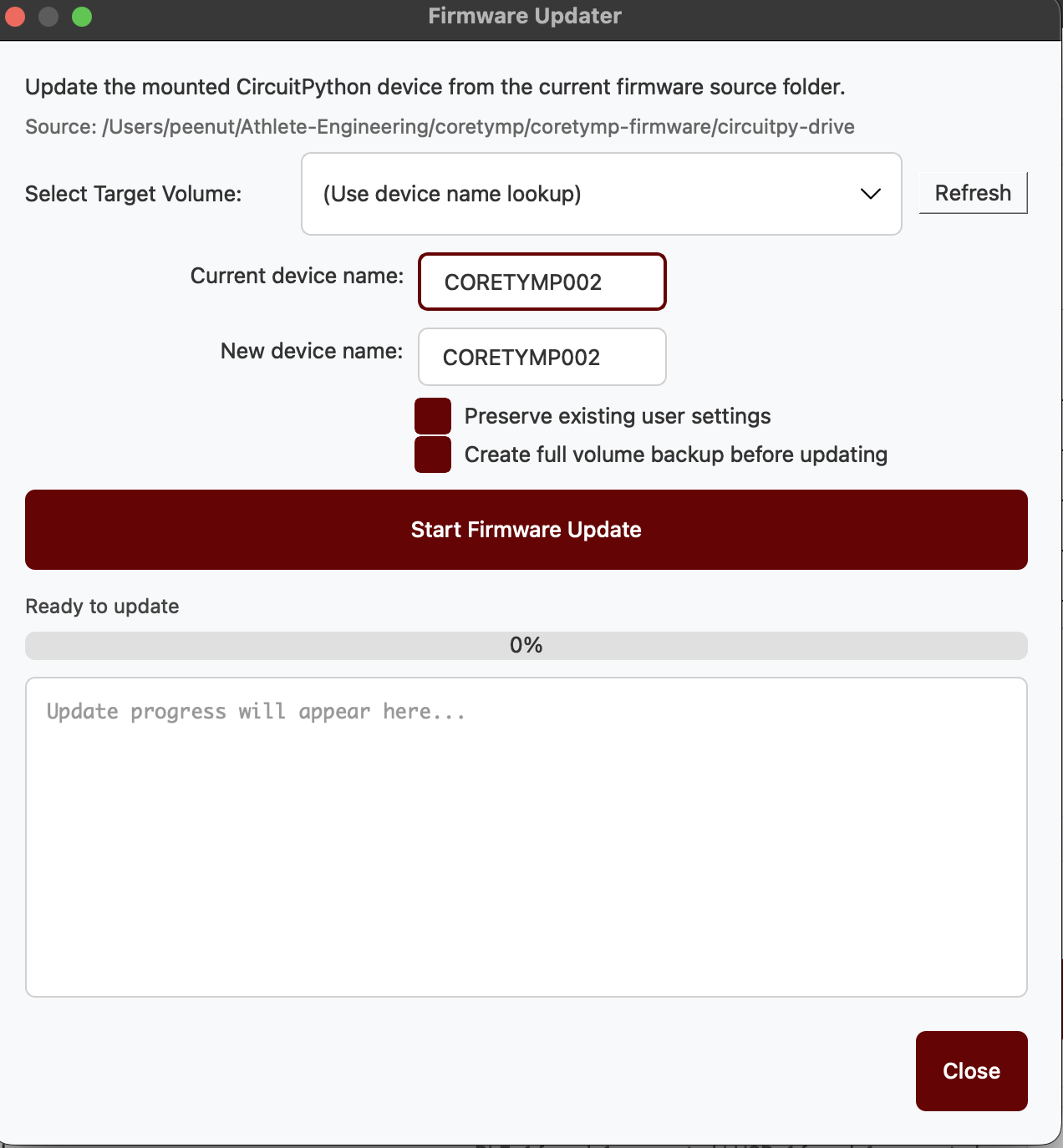

• OTA firmware updates: push new firmware to one or all connected devices from the GUI without physically reflashing each unit

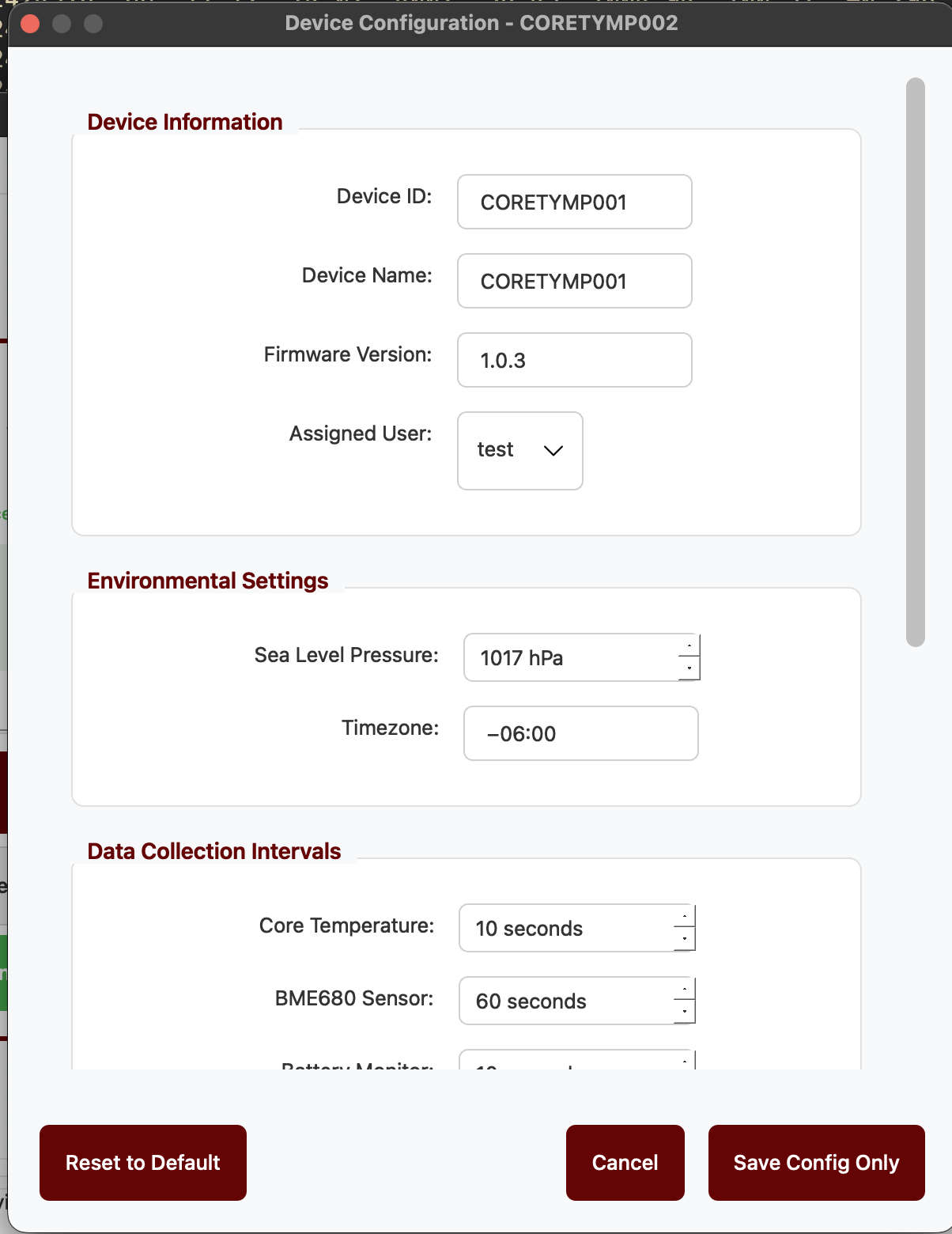

• Per-device configuration: adjust sampling rate, alert thresholds, and logging behavior on individual devices without affecting others in the session
• User assignment: assign a named user profile to each device before a session, so data files are automatically labeled and organized on download
• USB-C dock integration: when devices are docked, the app detects them over USB and automatically pulls logged data files and queues them for charging, no manual file management needed

GUI Screenshots

Project Ownership

• Software and firmware were handled by me
• Hardware was developed with a teammate, with my input on system decisions
